Adjustable Scaffold Trench Struts / Trench Struts / No.2 Struts

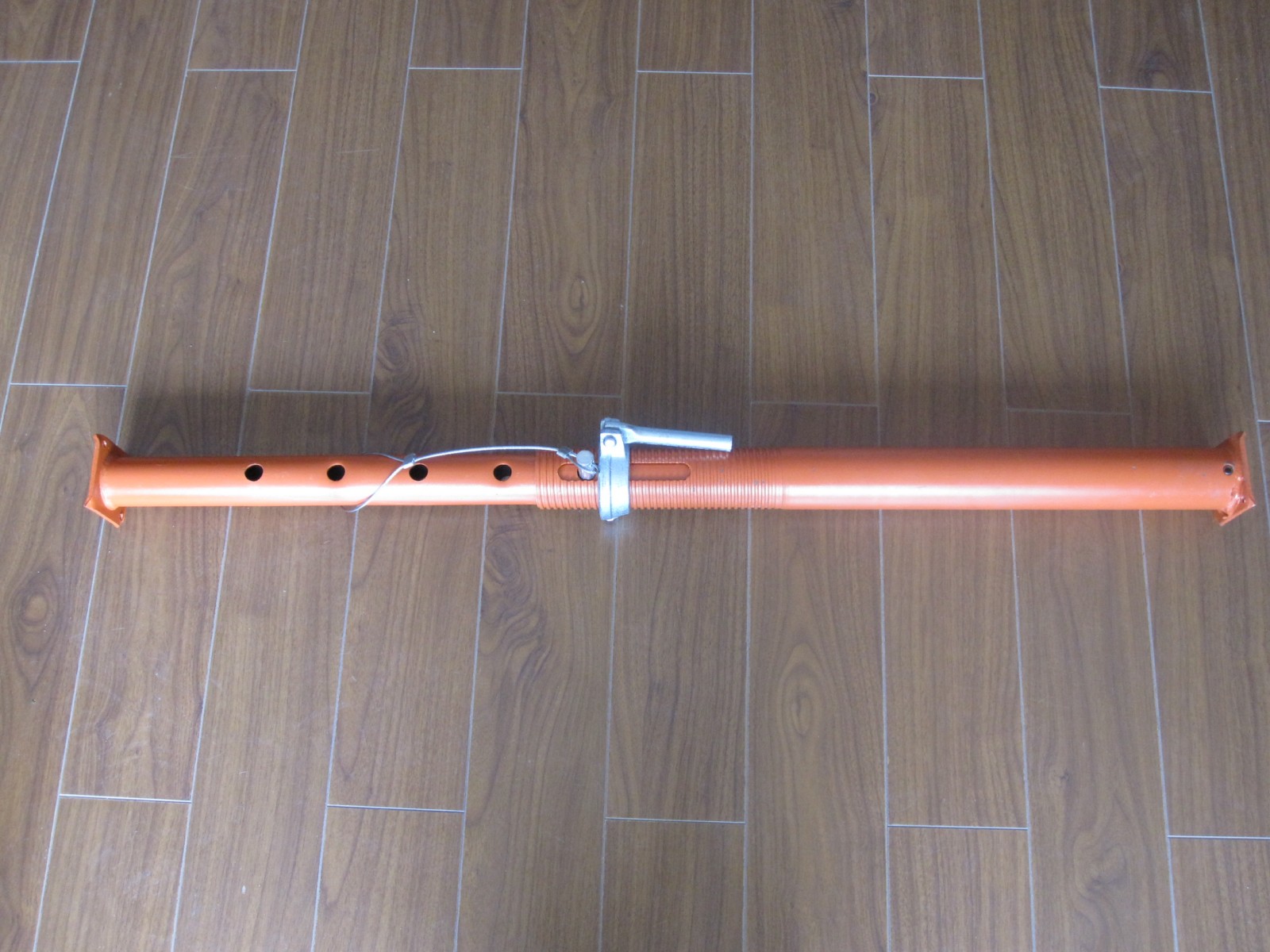

Scaffolding prop
Scaffolding props is mainly made up of bottom plate, outer tube,
inner tube, swivel nut, cotter pin, upper plate and the accessories
of folding tripod, head jack, the structure is simple and flexible.
So it is easy to assemble and disassemble.
Adjustable scaffolding props could be re-used, and once useless,
the material could also be recovered. Adjustable scaffolding props
could be adjusted to required height according to the different
height of the constructions.
Fully & independently tested to BS4074: 1982 / BS5507-3:1982
Outer Tube Φ60x3.5 Inner Tube Φ48.3x3.5
Finish: Painted Orange (Galvanised & Zinc Plated available upon
request).
No.0 Length: MIN 387-MAX 470
No.1 Length: MIN 564-MAX 725
No.2 Length: MIN 795-MAX 1097
No.3 Length: MIN 1127-MAX 1770
![]() |
